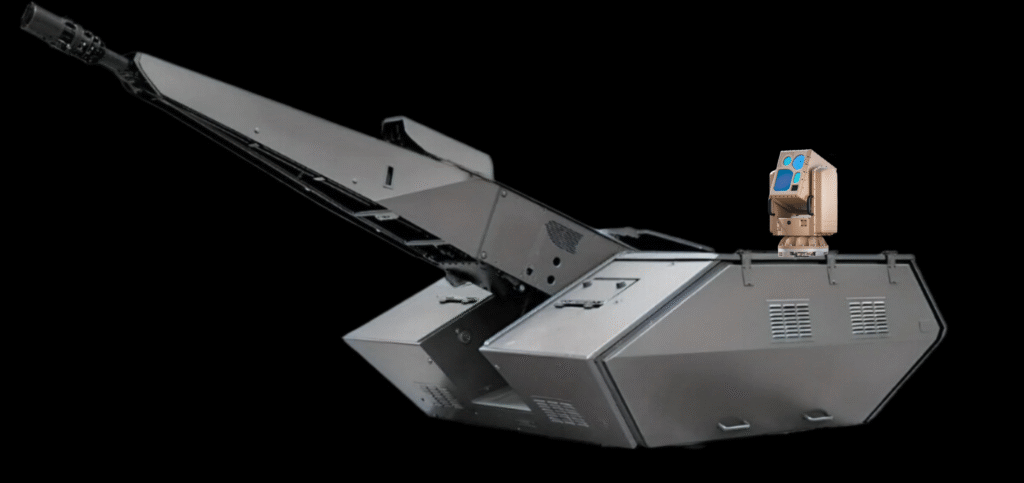

AUTONOMOUS 35MM AIR DEFENCE GUN WITH RADAR TRACKER
This remote controlled, high precision 35mm air defence gun with integrated radar tracker and electro-optical sensor unit is a powerful, autonomous shooter capable for various kinds of missions.
The Roark RG Mk3 can receive and process target data from 3D or 2D search radars or higher order controlsystems. The tracking radar’s automatic search pattern makes target handover simple, fast and reliable. The integrated gun control computer manages target tracking and engagement.
The electro-optical sensor unit enables visual target identification. Engagement supervision is performed by the Plexus command and control centre or via the remote gun console, which can handle up to 8 guns.
The integrated 35mm Roark RG Cannon provides superior fire power and accuracy. Combined with the Roark air burst ammunition the gun achieves a high
effectiveness against both, conventional and emerging air threats, including low, slow and small (LSS, UAV), rocket, artillery and mortar (RAM) and missile targets. The cannon and ammunition are fully qualified and in service on land and sea platforms. The Roark RG Mk3 is based on an ISO 1D container compatible platform with retractable hydraulic feet for easy transport and deployment in the field.
MAIN FEATURES
- Remote controlled 35mm air defence gun
- Effective combat range: up to 4,000m
- C-RAM capability
- 35mm Roark RG Cannon
- Nominal rate of fire: 1,000rds/min
- Rapid single shot mode: 200rds/min
- Ahead air burst ammunition
- Ready to fire ammunition: 252 rounds
- Remote charge and discharge function
- X-band or Ku-band tracking radar
- Modular electro-optical sensor unit
- Flexible target handover from 2D/3D search radars
- Automatic target handover and tracking
- Remote engagement supervision
- Simple handling and maintenance
- Integrated position locator and north direction finder
- No field alignment required
- Option: Integrated AESA search radar
TECHNICAL CHARACTERISTICS
Cannon
Calibre 35mm x 228
Nominal rate of fire 1,000 rounds/min
Rapid single shot 200 rounds/min
Mean muzzle velocity Ahead (V0 ) 1,050m/s
Mean muzzle velocity full calibre (V0 ) 1,075m/s
Length of cannon with muzzle brake 4,206mm
Barrel length (90 cal.) 3,150mm
Ammunition
Types (NATO Code)
ROARK ABM (RABM)
Standard full calibre HEI, HEI-T, FAP, TP-T
No. of rounds ready to fire 252
Gun turret
Weight of gun turret w/o ammunition 4,650kg
Weight of gun turret with ammunition 5,100kg
Swept radius (barrel 0°) 3,950mm
Traverse arc n x 360°
Elevation arc –10° to +85°
Traverse speed 115°/s
Elevation speed 57°/s
Tracking sensor unit
Tracking radar (TR) X-band or Ku-band
Instrumented range 30km
Update rate 50Hz
EO sensor package
TV camera HD colour CMOS, 2°–45°
IR camera Cooled MWIR, 640 x 512 pixels
Laser rangefinder Eye safe class 1M, 6–10Hz
Video tracker Adapted for air and ground targets
Sensor unit motion vs. gun turret: ±150°, –15°…+85°
Integrated search radar (option)
Search radar (SR): AESA, S-band or X-band
Instrumented range: 50km
Spatial coverage: 150°/360°, –15°…+85°
Fire control
Fire control module GCC35
Automatic target acquisition, detection and tracking
Remote controlled target engagement
Operation
Unmanned during operation, set up with 2 operators
Engagement supervision from remote gun console
