Roark Cicada HW

Description

Specification

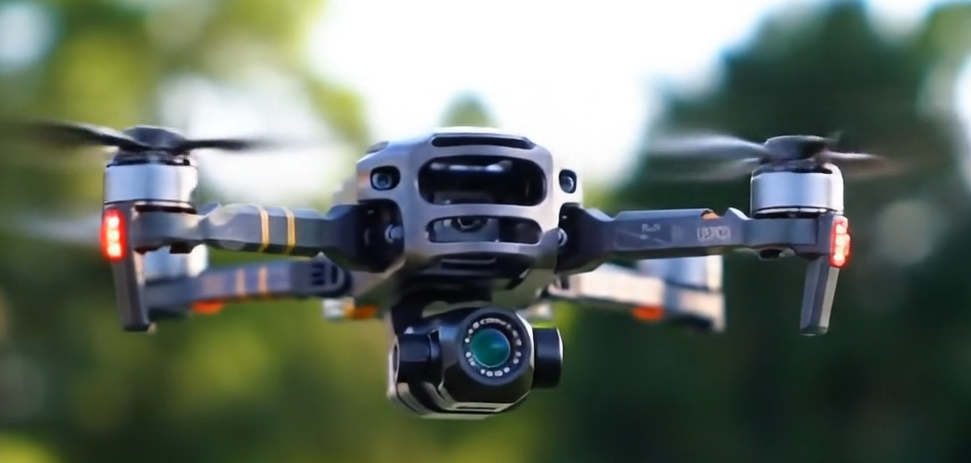

Carbon Fiber 7″ Quadcopter design with graphene EMI shielding coating and 300mm wheelbase

ESC: 55A 3-6s BLHeli_32, STM32F722

FC: F7 Pro HD Flight controller with 30.5mm x 30.5mm mounting and graphene infused silicone mounting garments, Gyro MPU6000 & STM32F7 Processor

Receiver: 2.4GHz Nano Receiver – EP1, 5V with SX1280 rf module (available in CSRF, ExpressLRF and FrSky). 2.23dB antenna & telemetry support

Camera: 1080p/100fps H.265 Max Video Transmission Quality, 10km Max Video Transmission Range, 30ms Lowest Video Transmission Latency, 1/1.7-inch CMOS Sensor, 4K/60fps, 155° Super-Wide FOV Video. Includes: camera module, transmission module, antenna module

Battery: 1250mAh 6S 100c Basher LiPo Battery

Motor: FPV V3 Pro Cinematic Motor Kv: 1350KV & Max Thrust: 1800g

Total Weight: 466.8g
